Expanded metals can be manufactured by carbon steel,galvanized steel,stainless steel,cooper,aluminium,Titanium,Nickel,Monel plates,etc.

American Standard Metal Plate Gauge Table
  Steel Galv.
Steel
Stainless
Steel
Monel   Brass Copper Aluminum Zinc Tin
Gauge Uss
(inch)
Uss
(inch)
Uss
(inch)
Uss
(inch)
B&S
(inch)
BW
(inch)
B&S
(inch)
Zinc
(inch)
Tin Plate
(inch)
32  0.0100  0.0134  0.009  ......  0.0080  0.0080  0.008  ........  0.0061
31  0.0110  0.0142  0.010  0.010  0.0089  0.0100  0.009   ........  0.0066
30  0.0120  0.0157  0.012  0.012  0.0100  0.0108  0.010   ........  0.0072
29  0.0135  0.0172  0.013  0.014  0.0113  0.0126  0.011   ........  0.0077
28  0.0149  0.0187  0.015  0.015  0.0126  0.0135  0.012   ........  0.0083
27  0.0164  0.0202  0.016  ........  0.0142  0.0159  0.014  0.500  0.0088
26  0.0179  0.0217  0.0178  0.018  0.0159  0.0162  0.016  0.375  0.0094
25  0.0209  0.0247  0.021  0.021  0.0179  0.0189  0.018  0.250  0.0099
24  0.0239  0.0276  0.0235  0.025  0.0201  0.0201  0.020  0.125  0.0105
23  0.0269  0.0306  0.026  0.028  0.0226  0.0216  0.022  0.100  0.0110
22  0.0299  0.0336  0.0291  0.031  0.0254  0.0226  0.025  0.090  0.0118
21  0.0329  0.0366  0.032  0.034  0.0285  0.0243  0.028  0.080  0.0123
20  0.0359  0.0396  0.0355  0.037  0.0320  0.0253  0.032  0.070  0.0130
19  0.0418  0.0456  0.042  0.043  0.0359  0.0270  0.036  0.060  0.0141
18  0.0478  0.0516  0.048  0.050  0.0403  0.0285  0.040  0.055  0.0149
17  0.0538  0.0575  0.054  0.056  0.0453  0.0320  0.045  0.050  0.0153
16  0.0598  0.0635  0.0595  0.062  0.0508  0.0323  0.050  0.045  0.0163
15  0.0673  0.0710  0.067  0.070  0.0571  0.0350  0.056  0.040  0.0171
14  0.0747  0.0785  0.075  0.078  0.0641  0.0359  0.063  0.036  0.0185
13  0.0897  0.0934  0.090  0.093  0.0720  0.0377  0.071  0.032  0.0193
12  0.1046  0.1084  0.105  0.109  0.0808  0.0431  0.080  0.028  0.0198
11  0.1196  0.1233  0.120  0.125  0.0907  0.0485  0.090  0.024  0.0207
10  0.1345  0.1382  0.135  0.140  0.1019  0.0508  0.100  0.020  0.0215
9  0.1495  0.1532  0.150  0.156  0.1144  0.0512  0.112  0.018  0.0229
8  0.1644  0.1681  0.165  0.172  0.1285  0.0539  0.125  0.016  0.0231
7  0.1793  .........  0.1874  0.187  0.1443  0.0641  0.140  0.014  0.0237

According to its material grade,we call them Aluminium Expanded Metal Mesh,Steel Expanded Metal Mesh,Stainless Steel Expanded Metal Mesh,Copper Expanded Metal Mesh,Titanium Expanded Metal Mesh,Nickel Expanded Metal Mesh,Monel Expanded Metal Mesh,etc. If any queries,just contact us wiremesh_making@aliyun.com

Product Show

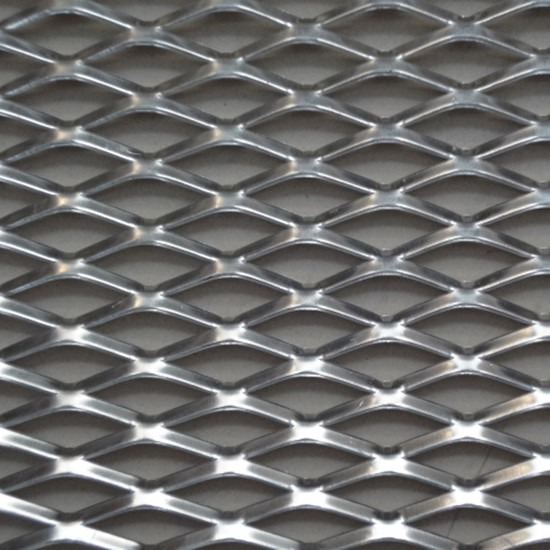

Stainless Steel Expanded Metal

Stainless Steel Expanded Metal

Stainless Steel Expanded Metal

Stainless Steel Expanded Metal Mesh with the strongest anti-acid,anti-corrosion features in the expanded metals series.It can be used for heavy industrial equipment,chemical plant,escalators,channels,mines,locomotives,roads,unicipal facilities,...
More>>

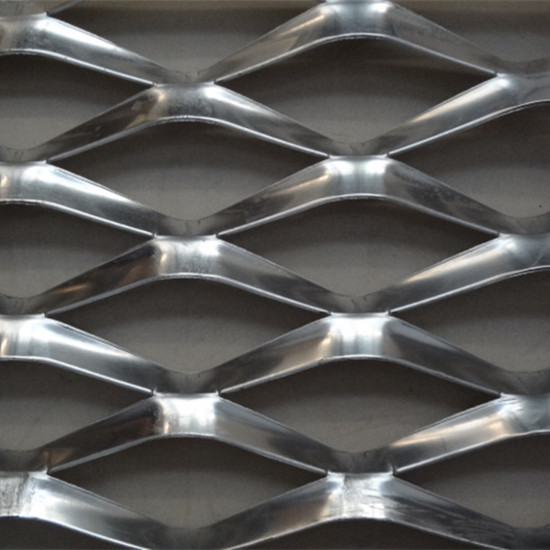

Aluminum Expanded Metal

Aluminum Expanded Metal

Aluminium Expanded Metal Mesh

Aluminum Expanded Metal is based on the original sheets of aluminum using the latest technology and the expansion of the cut is made more lightweight body and its net carrying capacity is strong. As society progresses, people pursue the demand for high qu...
More>>

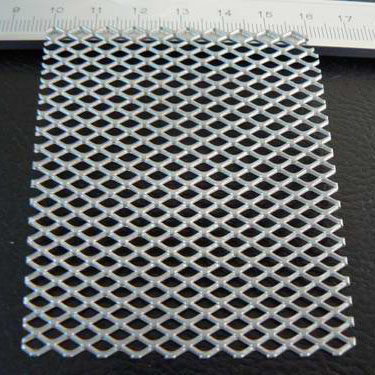

Titanium Expanded Metal

Titanium Expanded Metal

Titanium Expanded Metal Mesh/Titanium Foil Expanded Metal Mesh

Titanium Expanded Metal Mesh/Titanium Foil Expanded Metal Mesh,also known as titanium (foil) stayed mesh, titanium (foil) stretched mesh. normal hope shape is diamond.

Mesh Thickness: 0.04mm - 5.0mm
More>>

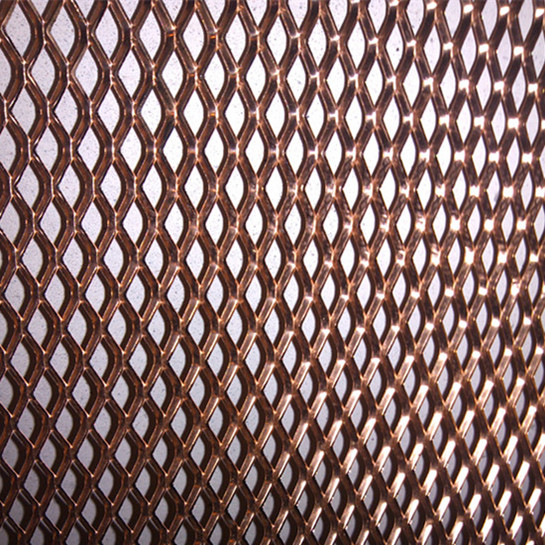

Copper Expanded Metal

Copper Expanded Metal

Copper Expanded Metal

Copper Expanded Metal is the use of copper plates through sliting and stretching machine expand mesh rolls or sheets products,it is uniform mesh,smooth surface and high coefficient of friction,high tensile strength.It can be cut processed,manufacured workpi...
More>>
